Details

• Platform

  Moterra SL
• Model Name

  Moterra SL 1
• Model Code

  C65094U

Frameset

• Frame

  Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset
• Fork

  Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• Headset

  Acros Adjustable Angle (1.2°)
• Rear Shock

  Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm

E-System

• Drive Unit

  Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
• Battery

  Custom 601Wh battery
• Charger

  Custom 4A
• Display

  Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
• Certifications

  UL2849

Drivetrain

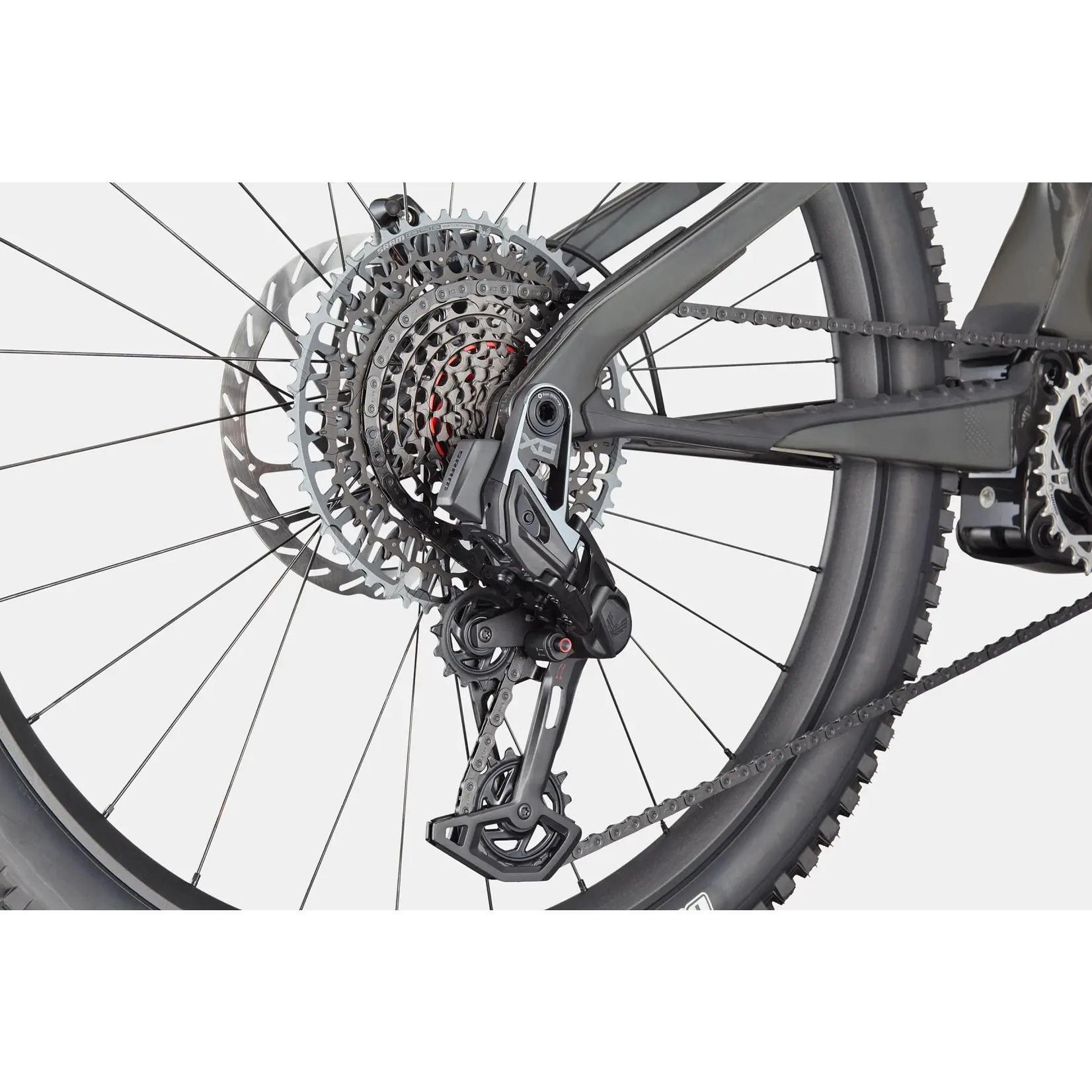

• Rear Derailleur

  SRAM XO Eagle AXS, T-Type
• Shifters

  SRAM AXS T-Type POD Controller
• Chain

  SRAM XO Eagle, T-Type, Flattop
• Crank

  e*thirteen e*spec Plus, 165mm, 34T
• Rear Cogs

  SRAM XO Eagle, 10-52, T-Type, 12-speed

Brakes

• Brakes

  SRAM Code Silver Stealth, 4-piston hydraulic disc, 200mm HS2 rotors
• Brake Levers

  SRAM Code Silver Stealth

Wheels

• Rims

  DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready
• Spokes

  DT Swiss Competition, straight pull
• Tire Size

  2.5
• Wheel Size

  29
• Hubs

  (F) DT Swiss 350, 15x110mm / (R) DT Swiss 350 Ratchet System 36 SL, 12x148mm
• Tires

  (F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready

Components

• Handlebar

  HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
• Stem

  Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
• Grips

  Cannondale TaperRidge
• Saddle

  Fizik Terra Ridon X3, 145mm, Wingflex, K:ium Mobius rail 7x7mm
• Seatpost

  Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)

Safety Information

• Ingestion Hazard

  WARNING - INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested. A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. KEEP new and used batteries OUT OF REACH OF CHILDREN. Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
